How Does Diamond Heat Dissipation Solve Modern Chip Cooling Challenges?
Rising Thermal Challenges in Modern Electronics
Power semiconductors such as SiC and GaN have expanded the operating limits of devices by offering higher switching frequencies and higher breakdown voltages. However, these advancements also lead to localized hotspots and severe thermal bottlenecks. Copper and aluminum, while cost-effective, are unable to dissipate the intense heat fluxes produced by such devices.
Heat buildup directly reduces device lifespan, lowers efficiency, and limits operating frequency. As a result, cooling has become as important as electrical performance in modern device design. Diamond heat dissipation provides the required leap forward, reducing chip temperatures by 40–50°C compared to conventional cooling structures and enabling three times higher power densities without compromising stability.
Diamond vs Traditional Cooling Solutions
When used as a thermal management material, diamond demonstrates several measurable advantages over standard approaches:
- Lower Thermal Resistance: Cooling structures integrated with diamond exhibit a 73% reduction in thermal resistance compared to copper or aluminum systems.
- Heat Spreading Efficiency: Diamond distributes heat away from localized hotspots, preventing performance degradation and allowing devices to operate under extreme conditions.
- Compact Design: Superior conductivity enables smaller, lighter, and more efficient cooling designs without bulky heat spreaders.
Diamond semiconductors represent a transformative solution to the escalating thermal challenges facing modern electronics. With thermal conductivity reaching 2,200 W/(m•K) - over 13 times higher than silicon and 5 times superior to copper - diamond materials are emerging as the ultimate thermal management technology for next-generation power electronics.
This positions diamond as an advanced alternative to copper diamond composite heat sinks (Cu-Diamond) and aluminum diamond composites (Al-Diamond), which combine structural practicality with diamond’s extraordinary thermal properties.
Managing GaN and SiC Device Heat with Diamond
Wide bandgap semiconductors such as GaN and SiC are at the center of modern high-power and high-frequency devices. While they outperform silicon electrically, they still face critical thermal challenges. Integration with diamond addresses these limitations directly:
- GaN on Diamond technology demonstrates an 8-fold reduction in thermal boundary resistance compared to conventional device interfaces.
- Heat fluxes that peak at 2.66 kW/cm² are reduced to 0.39 kW/cm² with diamond cooling.
- GaN RF amplifiers operating beyond 50 GHz benefit from stable performance due to superior thermal pathways.
By combining wide bandgap materials with diamond, engineers can achieve both electrical and thermal optimization in a single device structure. This is one of the biggest advantages of Diamond semiconductors.
Diamond Integration Technologies
The application of diamond in modern devices is supported by several key integration technologies:
CVD Diamond Heat Spreaders
Chemical Vapor Deposition (CVD) enables the creation of ultra-thin diamond films (100–400 μm) bonded directly onto semiconductor surfaces. These integrated heat sinks:
- Provide direct thermal pathways with minimal resistance
- Can be customized in thickness for different applications
- Are compatible with existing semiconductor manufacturing processes
Advanced Thermal Interface Materials
Diamond-enhanced thermal interface materials (TIMs) combine liquid metal conductors with diamond microparticles to reduce interface resistance:
- Liquefied diamond TIMs lower CPU temperatures by 19–20°C
- Nano-crystalline coatings eliminate additional thermal layers
- Composite TIMs achieve conductivities up to 21 W/mK while maintaining mechanical compliance

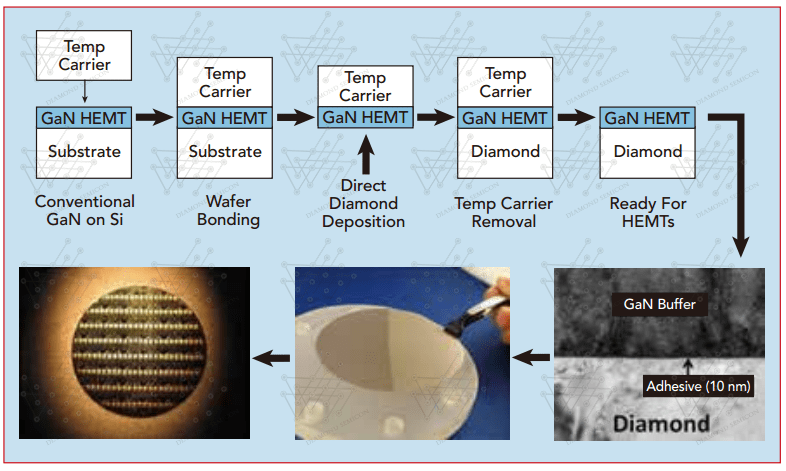

GaN-on-Diamond Wafers
The highest-performing approach is direct growth of GaN on diamond substrates. This eliminates intermediate layers and offers:
- Proximity to the heat source for maximum thermal extraction
- Reduced thermal path resistance
- Enhanced device reliability due to superior thermal stability
Performance Improvements Across Applications
The impact of diamond cooling is evident in real-world applications. Devices integrated with diamond-based thermal management demonstrate measurable improvements:
| Application | Temperature Reduction | Performance Gain | Power Density |
|---|---|---|---|
| GaN RF Amplifiers | 40°C | 25% | 10.2 kW/cm² |
| High-Power LEDs | 35°C | 30% | 5.0 kW/cm² |
| CPU Heat Spreaders | 27°C | 15% | 2.0 kW/cm² |
| Power MOSFETs | 45°C | 35% | 8.0 kW/cm² |
| Laser Diodes | 50°C | 40% | 15.0 kW/cm² |
Diamond semiconductors offer unmatched thermal performance compared to traditional materials. While silicon-based solutions operate effectively up to 200°C, diamond maintains stable performance beyond 600°C. This temperature resilience, combined with superior thermal conductivity, positions diamond as the definitive solution for extreme thermal management challenges.
The technology's ability to reduce cooling system complexity and enable higher power densities makes it particularly valuable for applications where space constraints and performance requirements are critical.
These improvements highlight how diamond cooling can extend device lifetimes, increase efficiency, and support higher operating frequencies. From diamond semiconductor devices in high-power electronics to diamond cool GPU applications in consumer electronics, the benefits are broad and scalable.
Future Outlook for Diamond Cooling
While traditional materials such as copper and aluminum continue to dominate mass-market applications, diamond is advancing in areas where performance demands exceed their capability. The ongoing progress in diamond device semiconductors, Cu-diamond and Al-diamond composites, and GaN-on-diamond wafers signals a future where diamond becomes a standard solution for thermal challenges in both industrial and consumer devices.
From laser diodes requiring maximum stability to CPUs and GPUs demanding efficient, compact cooling, diamond’s role in semiconductor thermal management is expanding steadily. Its adoption is likely to accelerate as manufacturing processes mature and costs decrease.
Final Thoughts
Diamond stands out as the highest thermal conductive material, and its integration into power electronics directly addresses the pressing challenge of heat dissipation. By reducing chip temperatures, improving reliability, and enabling higher power densities, diamond reshapes the limits of device performance.
Although SiC and GaN remain critical for modern electronics, their integration with diamond creates a powerful combination that extends both electrical and thermal capabilities. As chip designs continue to push toward higher power densities and faster operation, diamond cooling is set to play an increasingly central role in semiconductor thermal management.
