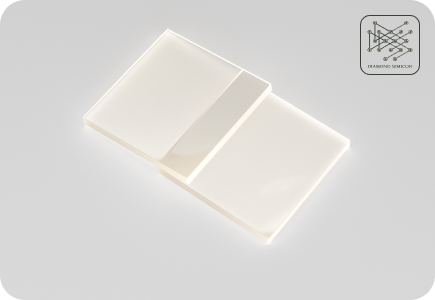

GaN on Diamond
Specifications
-
GaN thickness: 0.5 µm – 5 µm
-
Substrate: SCD (100) or (111), polished
-
Interface: Buffer layer (e.g., AlN or AlGaN)
-
Crystalline quality: Low dislocation density
-
Thermal resistance: Ultra-low (< 0.1 K/W)
Applications
-
GaN HEMTs with high power density
-
RF and 5G devices
-
Next-gen radar and communication systems
-
Thermal management-critical devices
Industries
-
Wireless Communications
-
Military Radar
-
5G Infrastructure
-
High-Power Electronics
